Innovation By Professional

for Large-scale load test

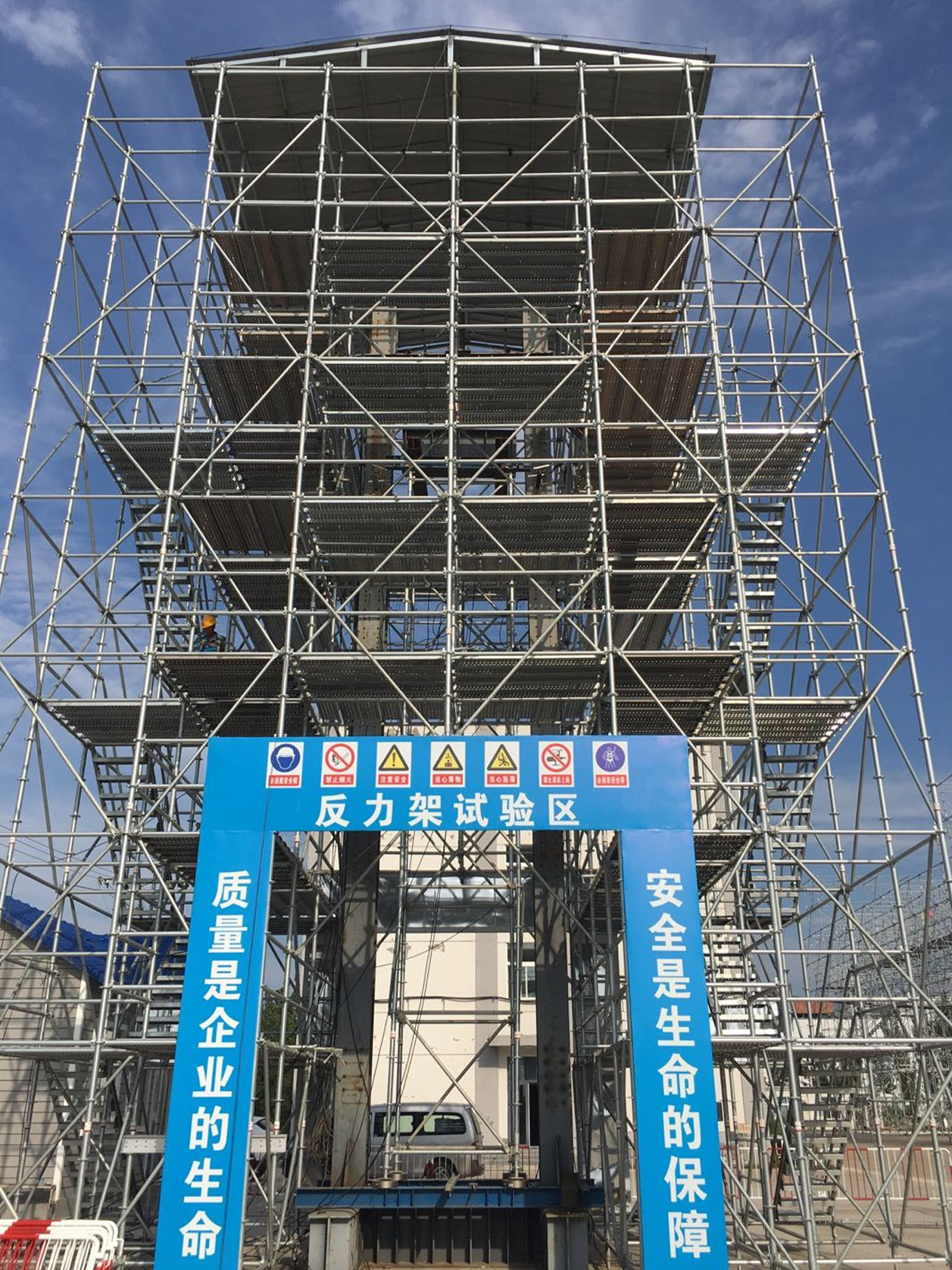

Modular reaction frame

The Modular Reaction Frame System developed by Wenma provides a systematic testing tool for the designed parameters of the shoring and scaffolding structure, such as the load capacity and stability, and provides a reliable guarantee for our R&D team to innovate in components and construction methods. The system adopts modular design and has adjustable height and loading mode. It also uses a full hydraulic digital control servo loading system, which can simulate a variety of loading modes and working conditions.

01

Up to 12m Testing Height

The modular design allows for flexible combinations, offering testing solutions for shoring towers and scaffolding birdcage structures.

02

Up to 2000KN Loading

Our Full Hydraulic Digital Control Servo Loading System and the background computer are digitally integrated, enhancing the efficiency and accuracy of experiment process control and results verification.

03

Advanced Data Acquisition

Utilizes wireless load, laser displacement, and angular displacement sensor technologies, enabling real-time wireless image monitoring, high-speed digital signal acquisition, and data analysis capabilities.

ILAC-MRA & CNAS Accredited Lab

Wenma’s ILAC-MRA & CNAS accredited laboratory enhances the capabilities of our R&D team by providing comprehensive chemical, physical, and load capacity testing services in-house.

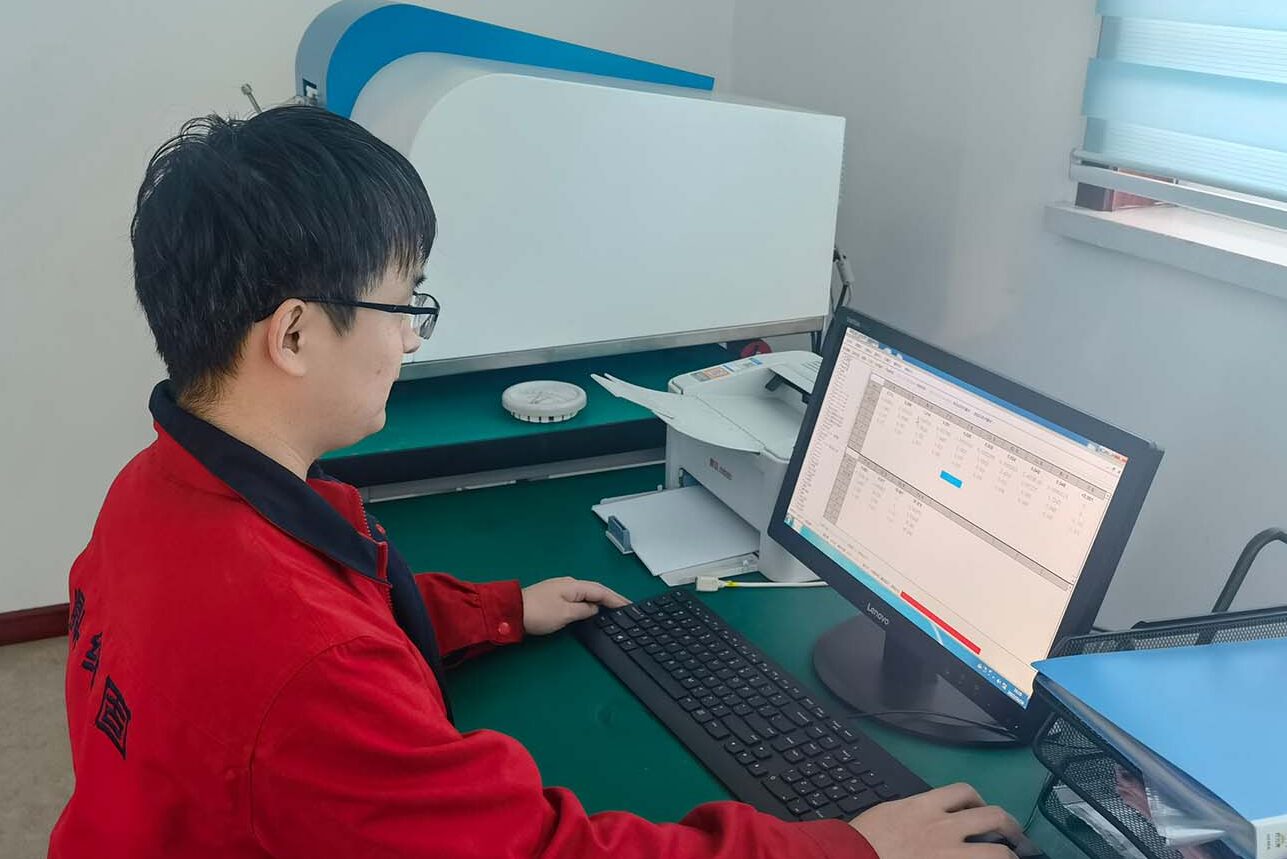

Chemical Analysis

Chemical Analysis

Determines material composition & content of all chemical components

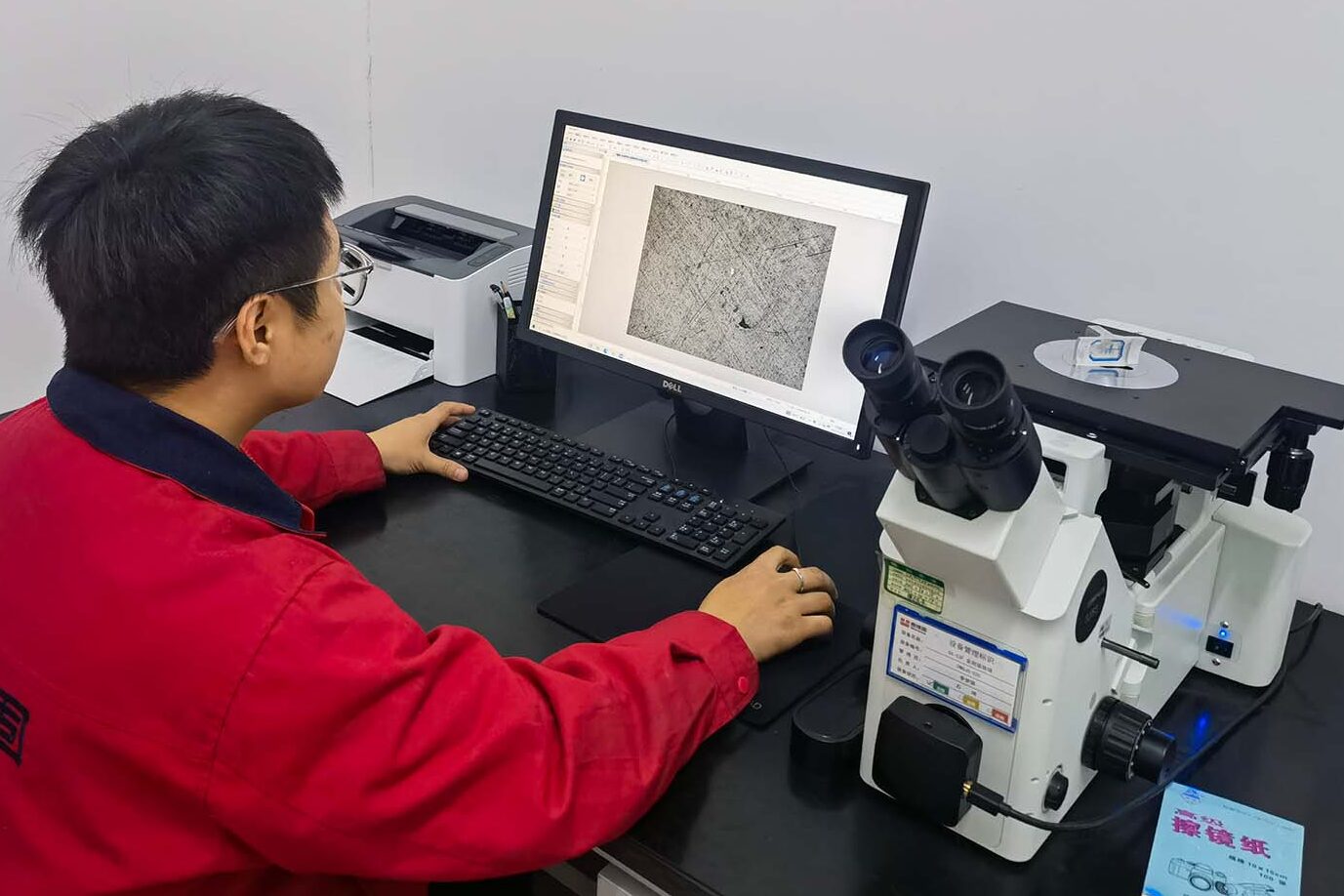

Metallography Detection

Metallography Detection

Evaluates the quality and properties of materials

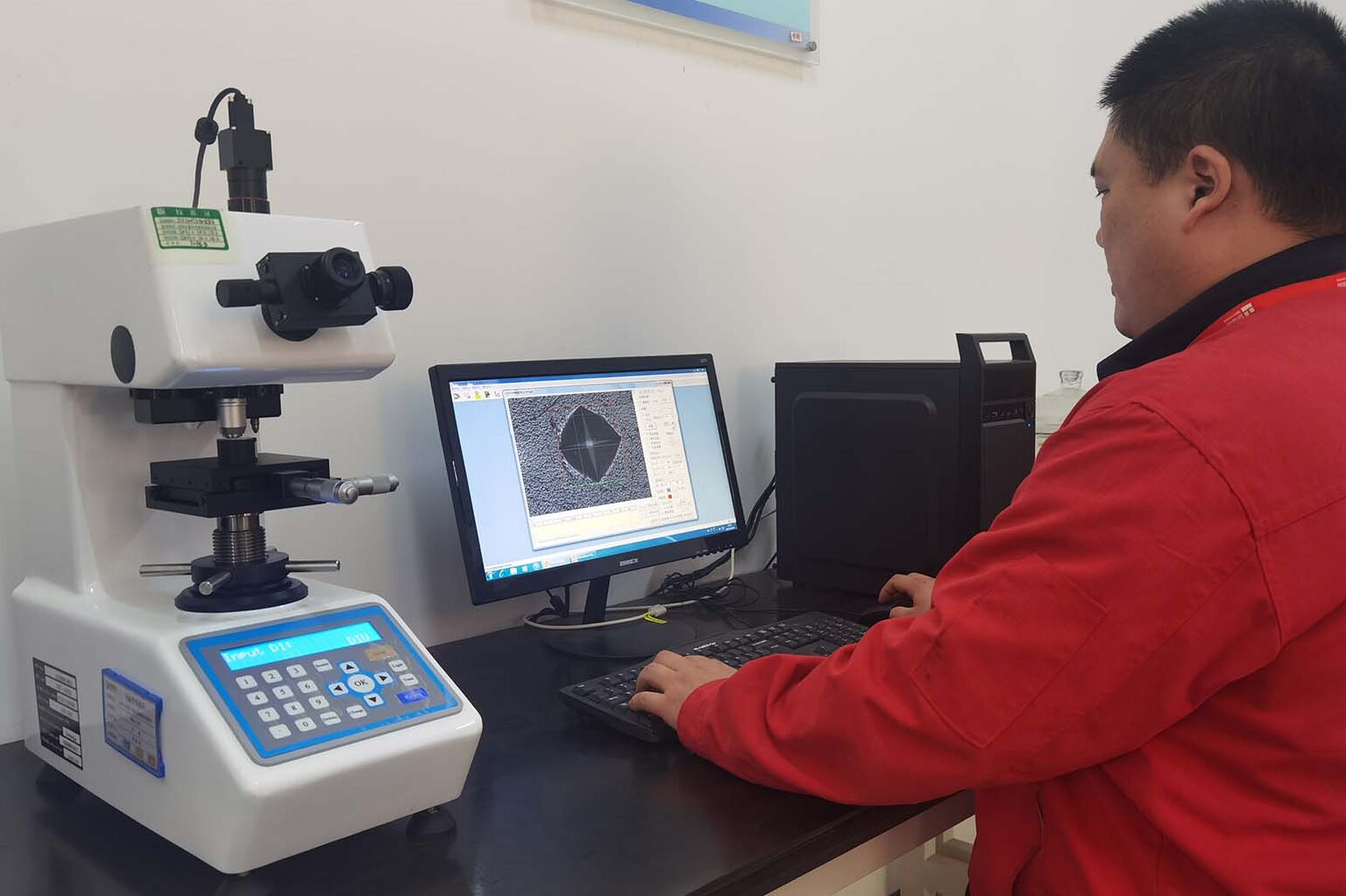

Vickers Hardness Test

Vickers Hardness Test

Reflects the differences in chemical composition, organizational structure & processing technology of materials

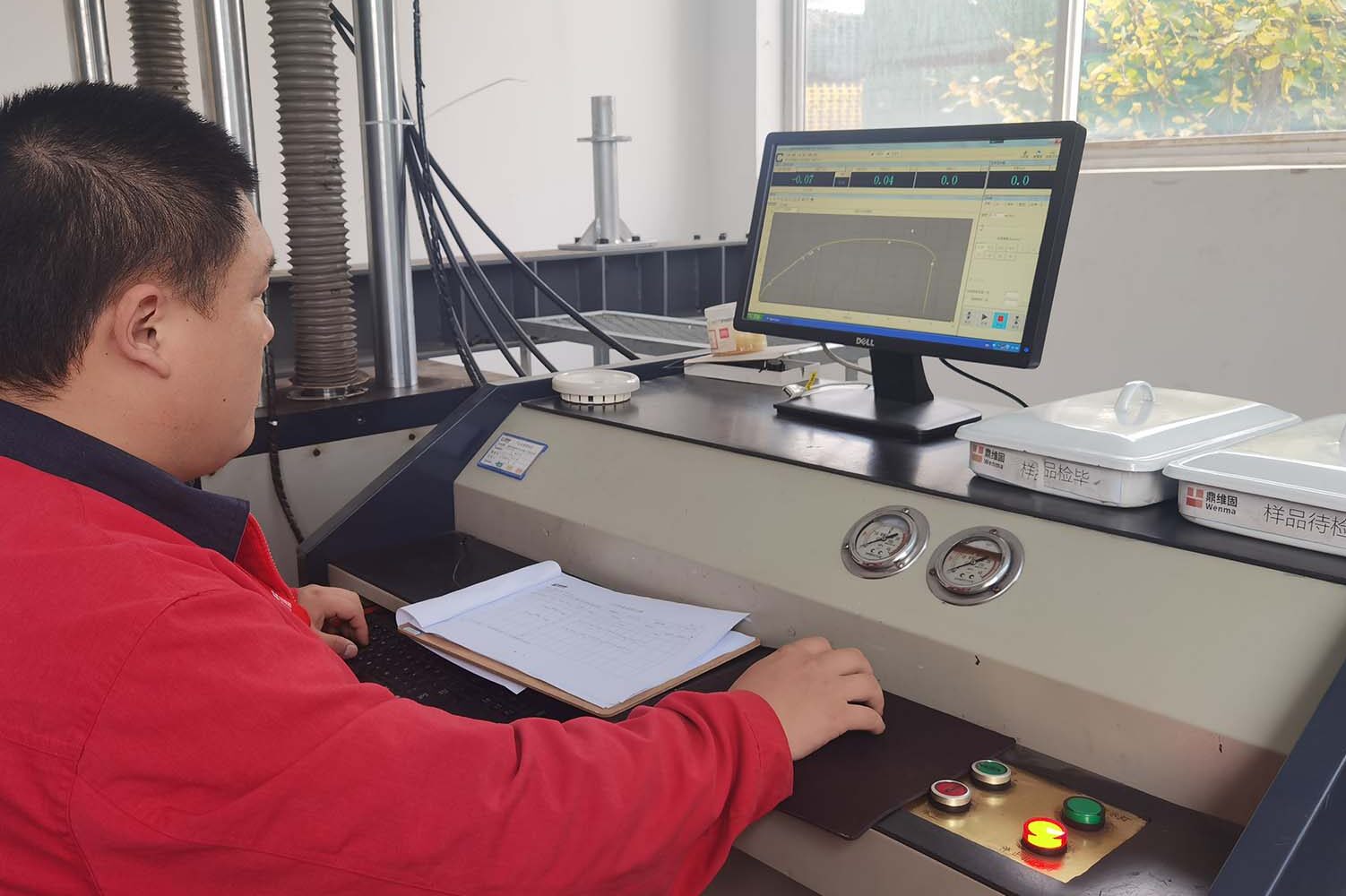

Room Temperature Tension Test

Room Temperature Tension Test

Determines mechanical properties & failure modes

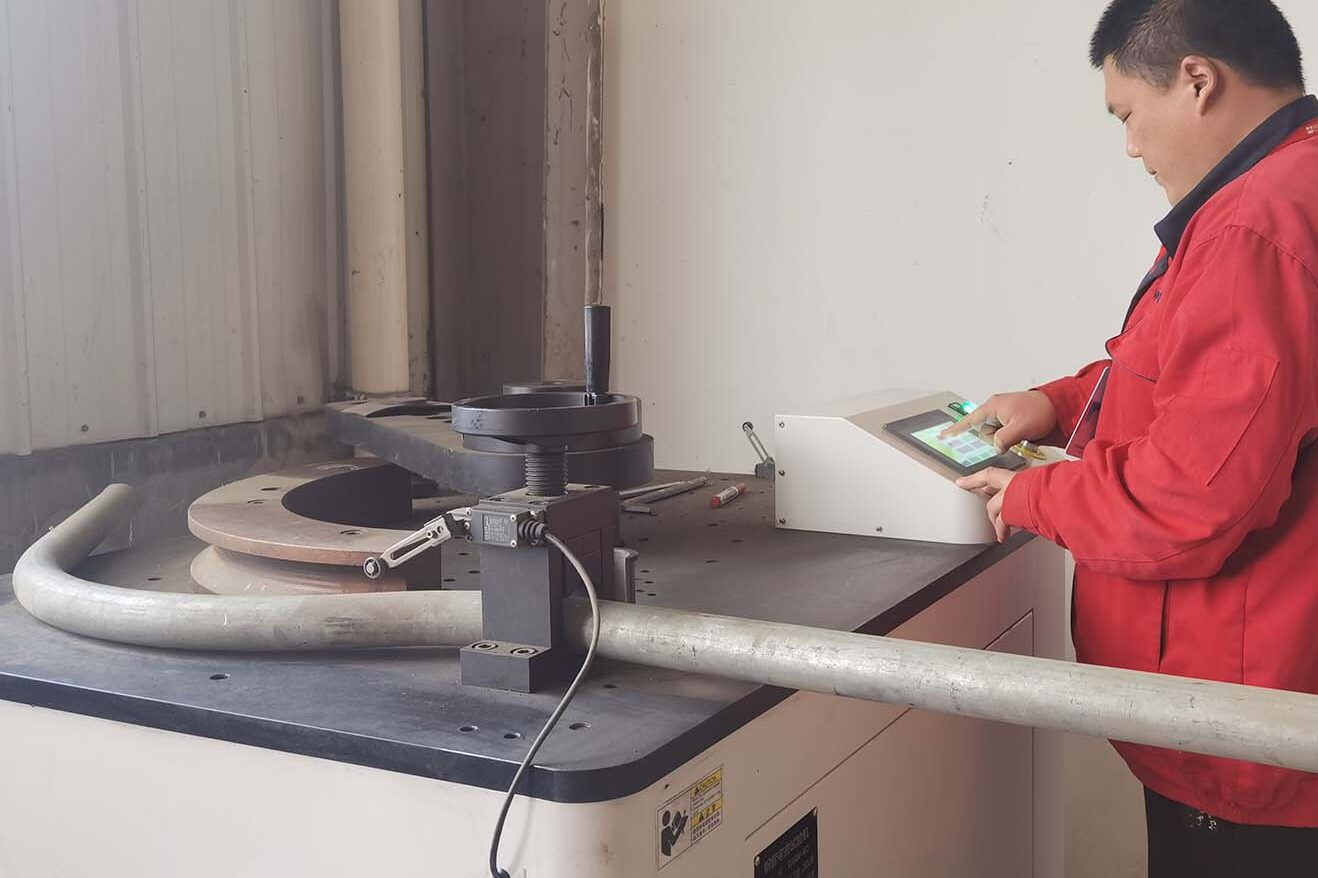

Benidng Test

Benidng Test

Evaluates ability of metal materials to withstand bending deformation at specified bending levels

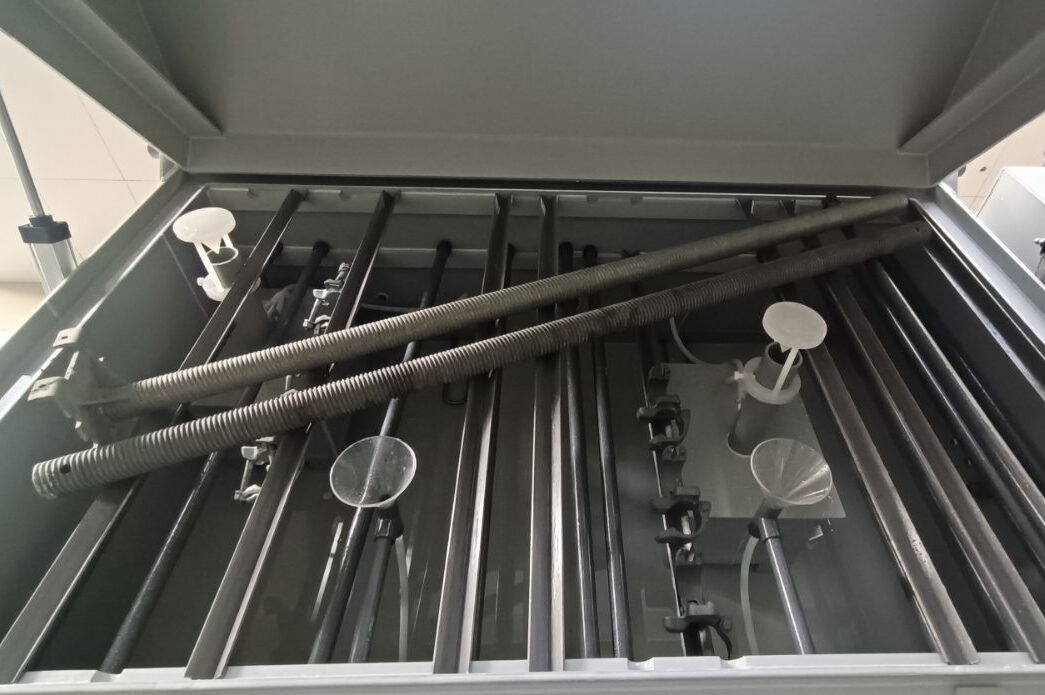

Salt Spray Test

Salt Spray Test

Evaluates corrosion resistance of materials in salt spray environment

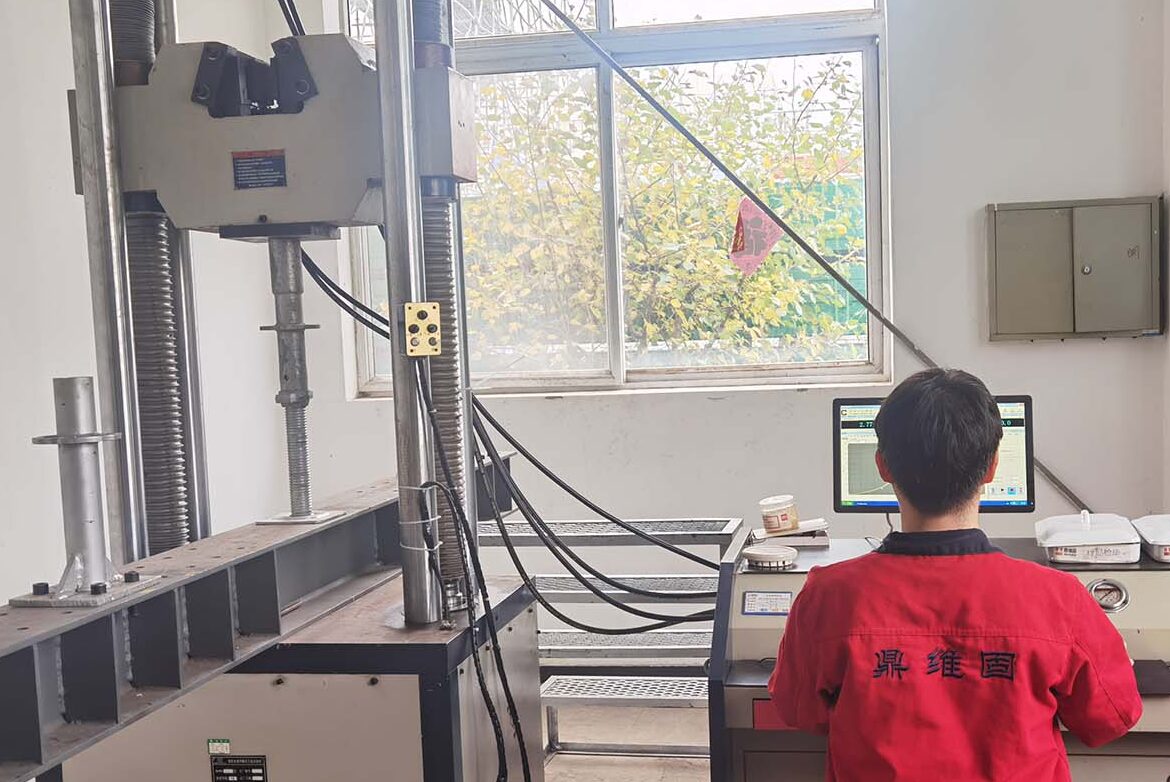

Load Capacity Test

Load Capacity Test

Screw Jack and U Head Nuts

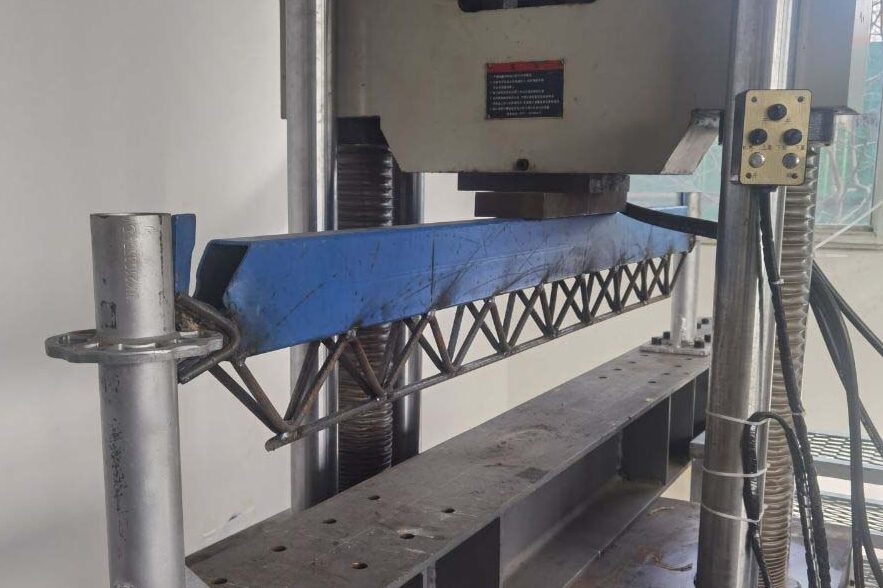

 Load Capacity Test

Load Capacity Test

Trussed Ledger

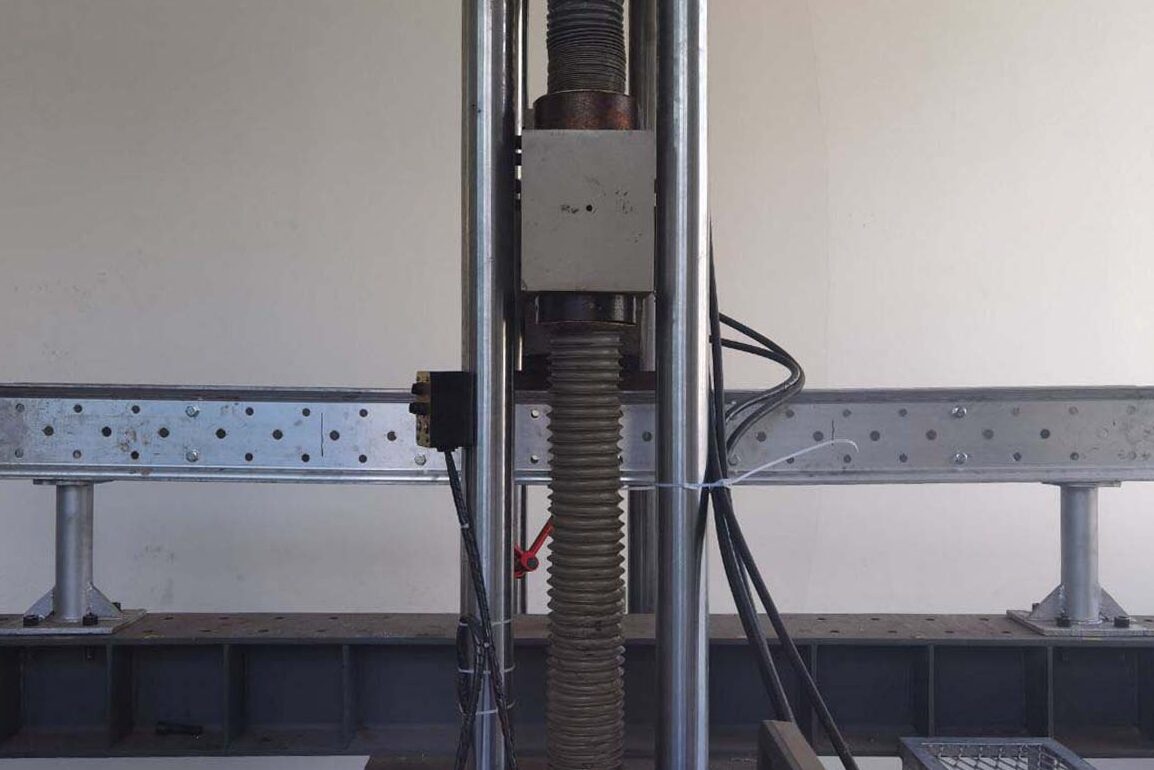

 Load Capacity Test

Load Capacity Test

Aluminum Beam

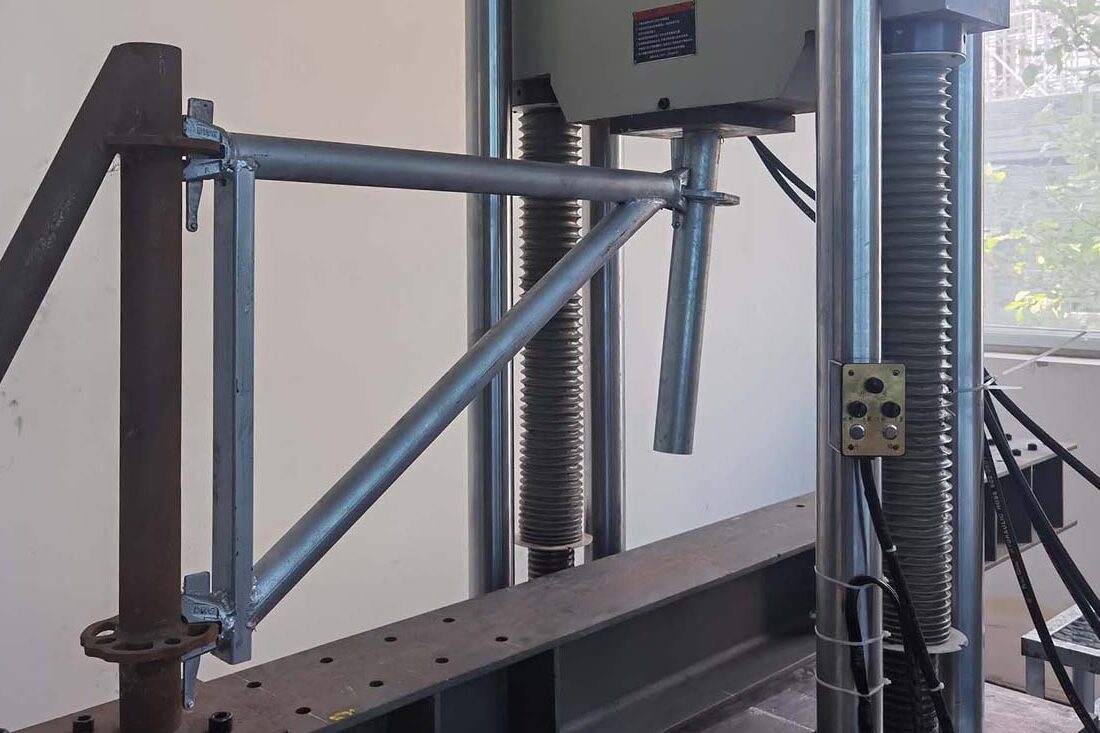

 Load Capacity Test

Load Capacity Test

Side Bracket

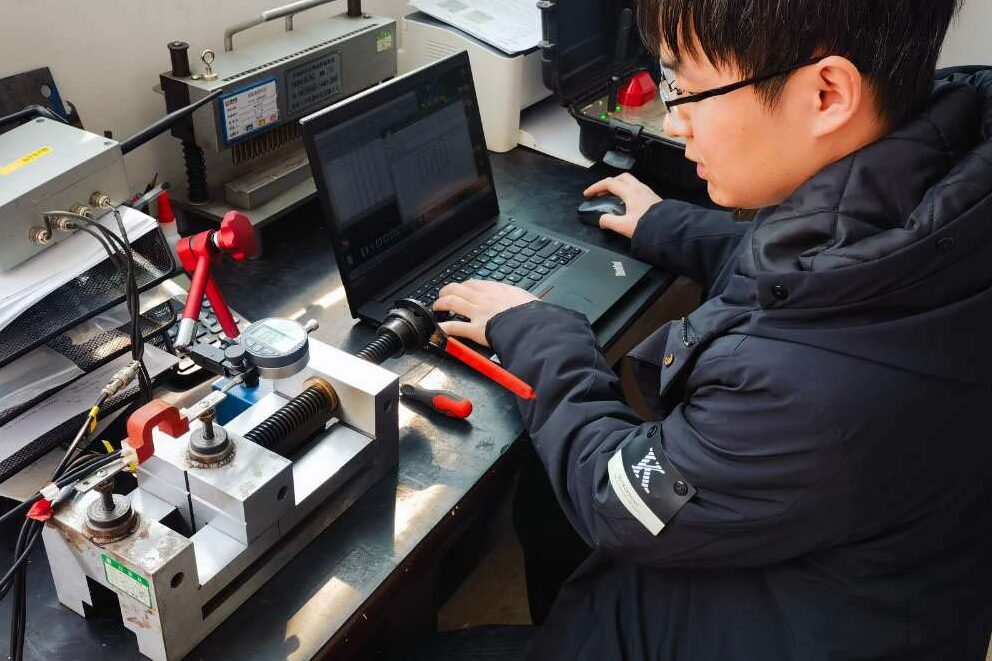

Strain Gauge Accuracy Test

Strain Gauge Accuracy Test

Sensors accurately measure the deformation and stress of structures

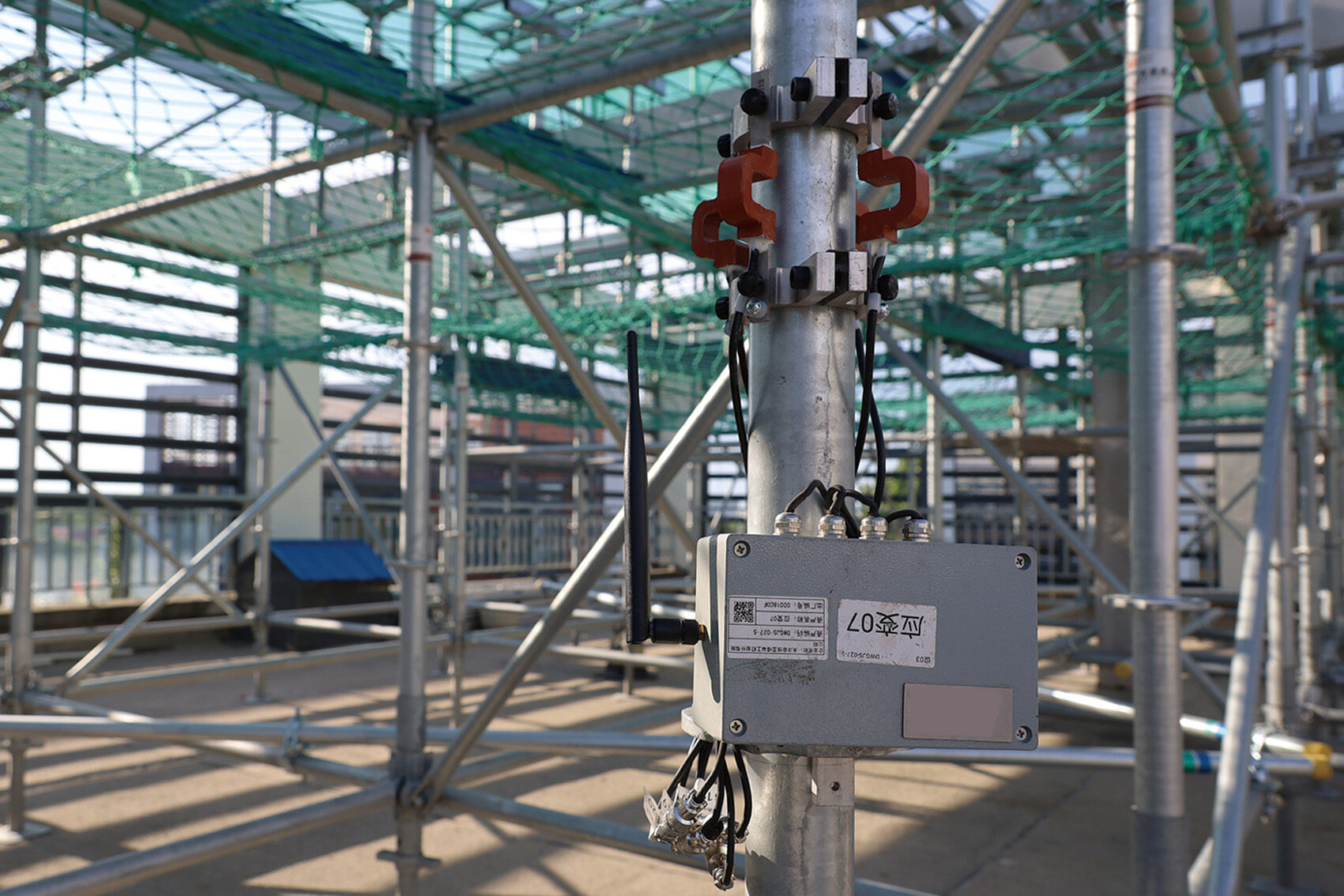

Load Monitoring System

Load Monitoring System

Detects the scaffolding or shoring structural load Real-time

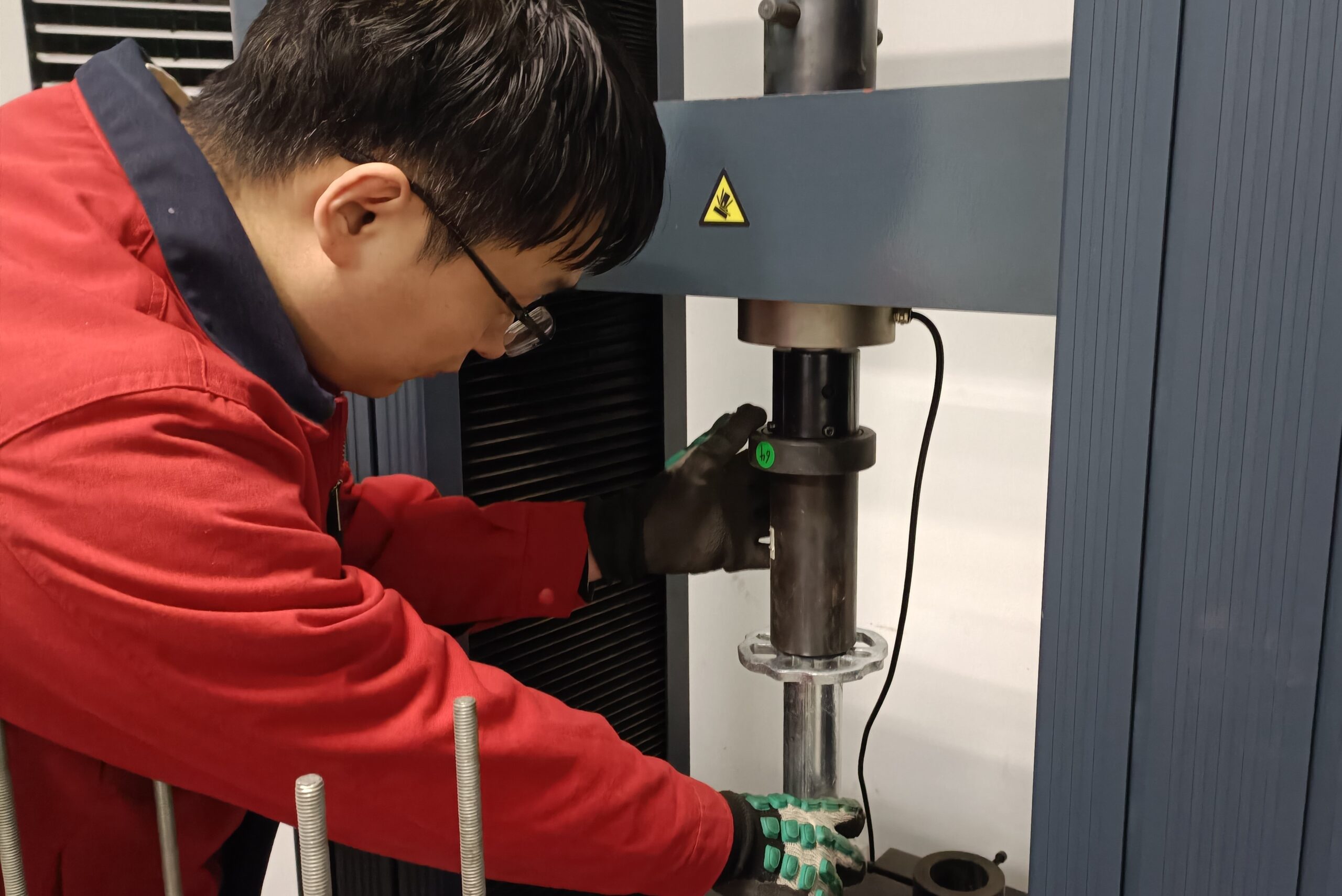

Shear Strength of Welds

Shear Strength of Welds

Check the girth weld on the inner side of Rosettes

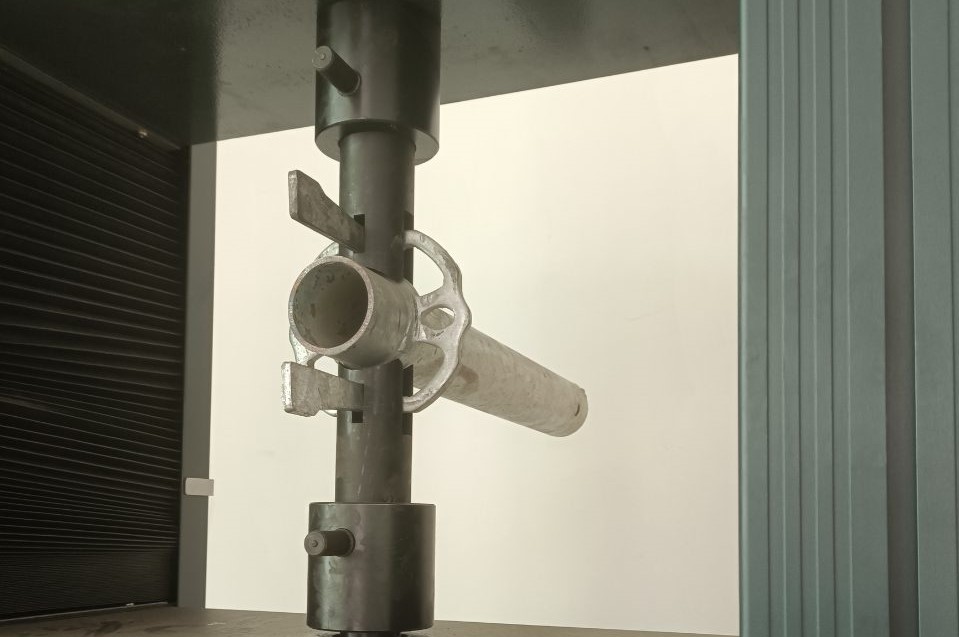

Tensile Strength Test

Tensile Strength Test

Maximum tensile strength Rosettes can withstand during the stretching process

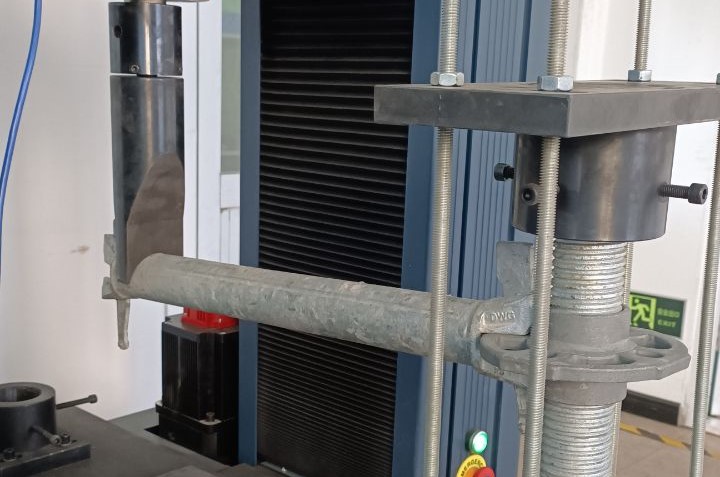

Bending Tensile Strength

Bending Tensile Strength

Maximum bending tensile strength Rosettes can withstand during the loading process

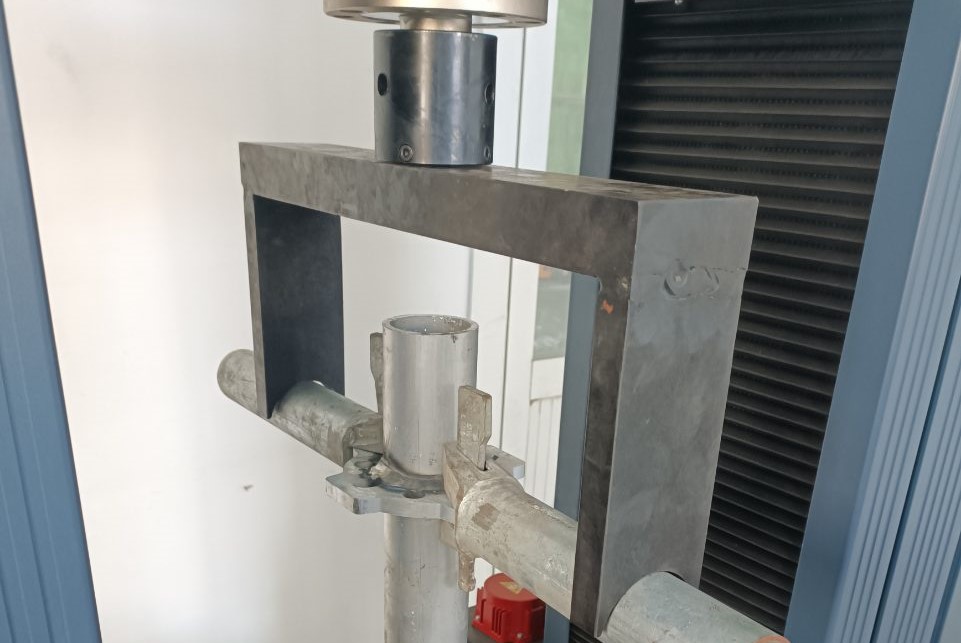

Shear Strength of Rosettes

Shear Strength of Rosettes

Test of shear strength on both sides of Rosettes

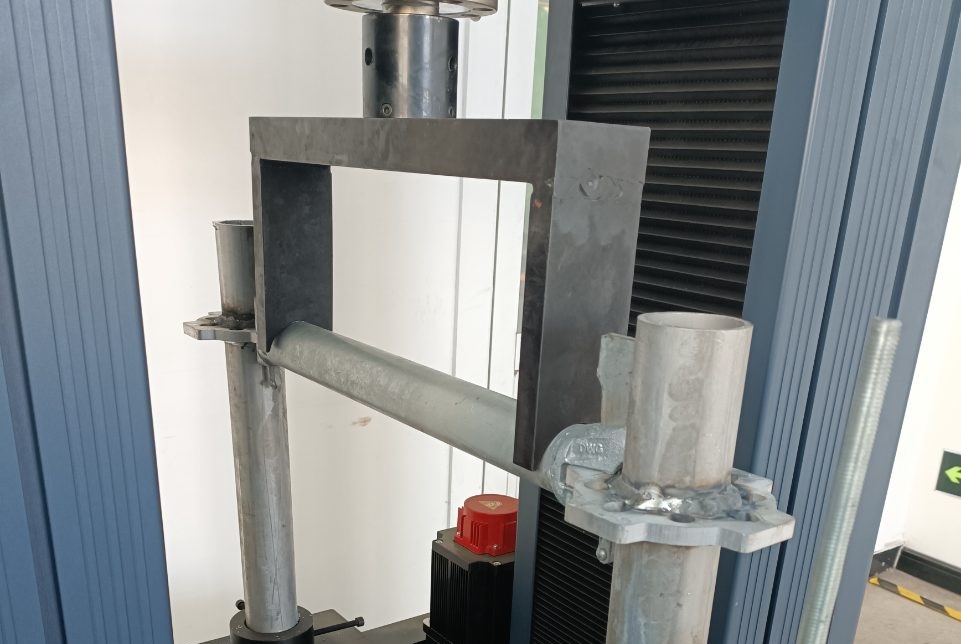

Shear Strength of Rosettes

Shear Strength of Rosettes

Test of shear strength on one side of Rosettes

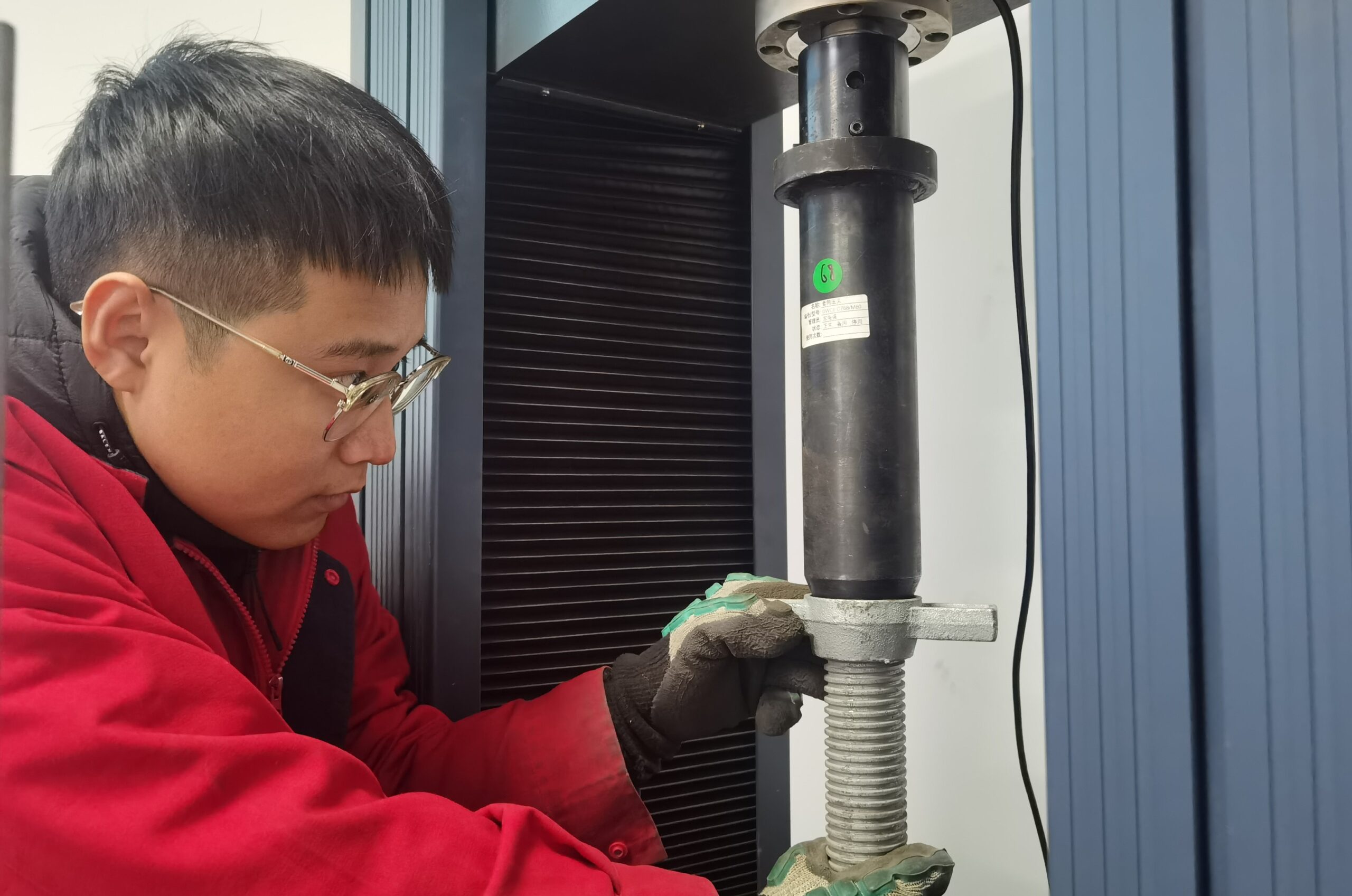

Load Capacity Test

Load Capacity Test

Screw Jack and U Head
